HSM60

Seamless Security for Raspberry Pi Compute Modules

Easy to integrate interposer module
640 key slots with BIP, SLIP wallet support
Always-encrypted host interface
Last gasp key-destruction on power loss
Seamless integration with Bootware
Hardware root of trust
File system encryption
Secure key generation & storage
Data encryption & signing
Perimeter tamper sensors
Measured system identity & authentication
Real time clock

PRE ORDER

CONTACT SALES >

essential security upgrade for raspberry pi compute modules

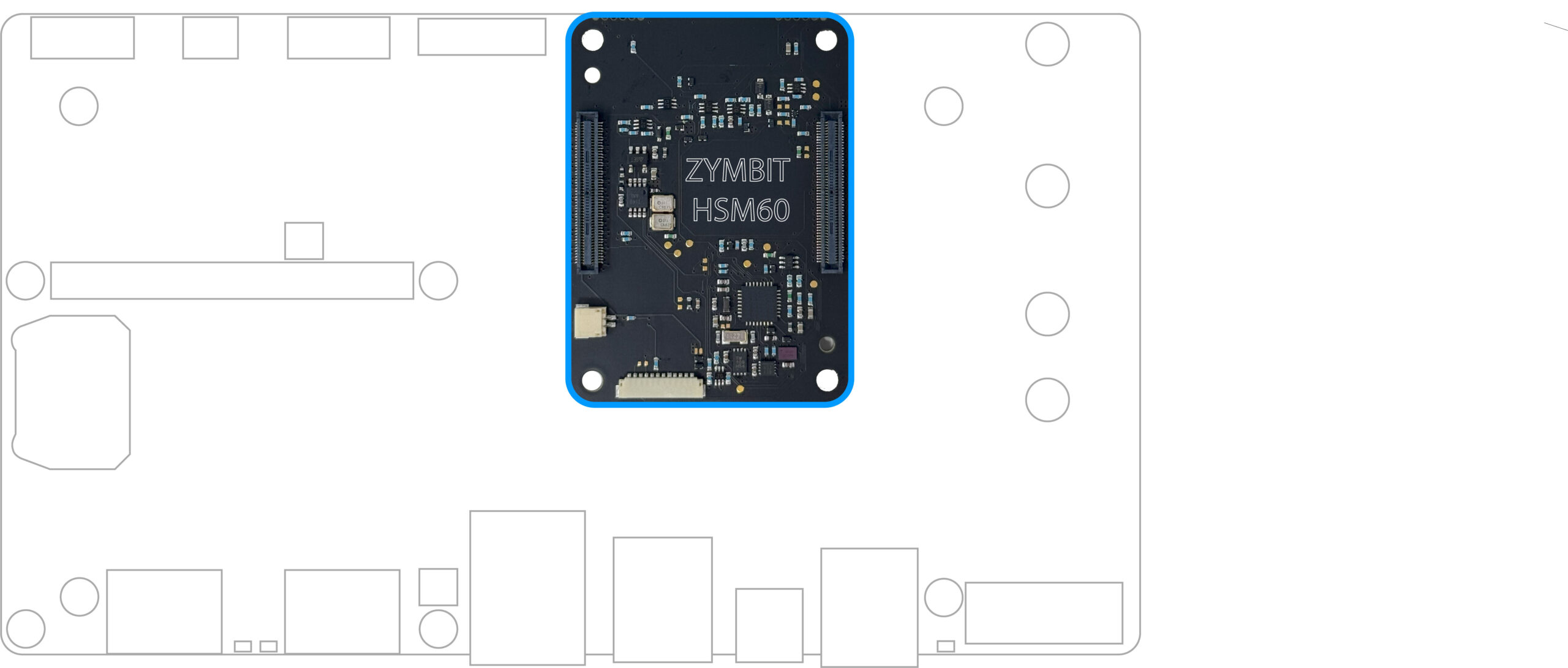

zymbit plug-in security module HSM for raspberry pi

Overview

Specifications

Documentation

Specifications

Private / public key pairs	512
Foreign public key pairs	128
Wallet functions	BIP 32 - hierarchical deterministic wallet BIP 39 - master seed mnemonic generator SLIP 39 - with shamir's secret sharing BIP 44 - multi-account support
Cryptographic Services	ECC KOBLITZ P-256 (secp256k1) ED25519, X25519 ECDH (FIPS SP800-56A) TRNG (NIST SP800-22, NIST SP800/90B, NIST SP800/90C pending) ECC NIST P-256 (secp256r1) ECDSA (FIPS186-3) AES-256 (FIPS 197)
Tamper Sensors	2 x Perimeter breach detection circuits Accelerometer shock & orientation sensor Main power monitor Battery power monitor Battery removal monitor
Software API	Python, C++, C
Host Interface	Always encrypted channel with ephemeral ECC keys I2C, default address, user changeable GPIO4, user changeable
Physical Format	Raspberry Pi CM interposer module
Dimensions	55.0 x 40.0 x 5.6 mm 2.16 x 1.57 x 1.57 Inches
Board Connectors	Motherboard connector x2 : Hirose Receptacle DF40HC(3.0)-100DS-0.4V(51) Compute Module connector x2 : Hirose Header DF40C-100DP-0.4V(51) Perimeter: 12pin JST 0.8mm receptacle (mates with JST 12SUR-32S) Battery: 2pin JST 0.8mm receptacle (mates with JST 2SUR-32S)
Production mode lock	Software API command
Measured system identity & authentication	Multiple system factors including RPI host, HSM60
Data encryption & signing applications.	Encrypt root file system with dm-crypt, with LUKS key manager hook Encrypt data blobs with "zblock" function Encrypt data in flight with OpenSSL integration
Real time clock	36-60 months operation, application dependent, 5ppm accuracy.
Backup battery	Used for RTC and perimeter circuits Requires JST connected coin cell, RPI 5 RTC battery , or similar, (not included) Recommend
Backup battery monitor	Yes
Last Gasp battery removal detection	Yes
OEM Custom features	Contact Zymbit
Example Cipher Suites	AWS-IOT \| TLS_ECDHE_ECDSA_AES256_SHA MS-AZURE \| TLS_ECDHE_ECDSA_AES_128_GCM_SHA256_P256
Accessories & related products	Backup battery, perimeter cables
Warranty	18 months
Compatibility	Pi CM5, CM4
