Secure Compute Module

All-in-one secure Linux compute module for developers of IoT devices and infrastructure.

The hardened Raspberry Pi compute module for zero-trust environments.

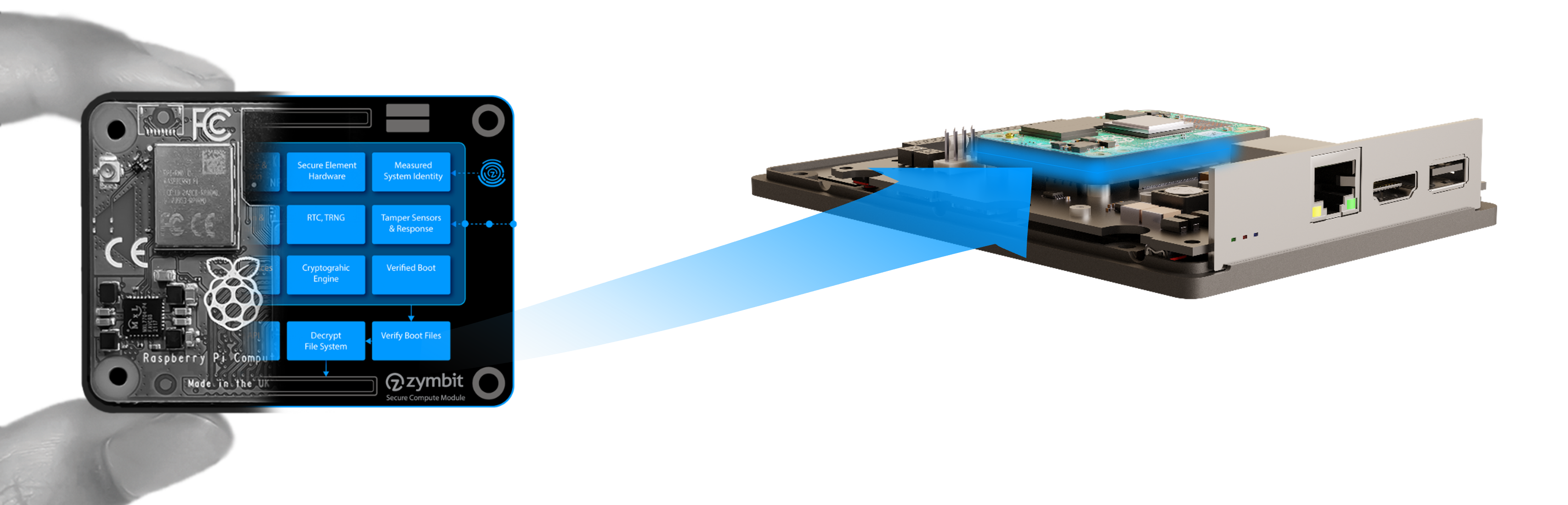

Secure compute module by Zymbit. Feature Raspberry Pi CM4 with zymbit verified hardware agent HSM.

Open for developers. Hardened for life on the edge.

Enjoy all the freedoms of the Raspberry Pi developer ecosystem with the protection of Zymbit verified hardware and tools.
  • Raspberry Pi CM4 compute
  • Secure boot
  • Encrypted file system
  • Hardware cryptographic engine
  • Fully encapsulated, tamper resilient
  • Standard and custom images
Secure Compute Module by Zymbit. The hardened Raspberry Pi CM4 with integrated HSM.

Overview

Hardware secured compute for critical applications

RASPBERRY PI CM4
SECURE BOOT
ENCRYPTED FILE SYSTEM
KEY STORAGE & GENERATION
DATA ENCRYPTION & SIGNING
REAL TIME CLOCK
MEASURED SYSTEM IDENTITY
ENCAPSULATED MODULE
PHYSICAL TAMPER SENSORS
CRYPTOGRAPHIC ENGINE
HD HARDWARE WALLET
SHAMIRS SECRET SHARING
ULTRA LOW POWER
BATTERY MONITOR, LAST GASP
QUAD CORE CORTEX-A72

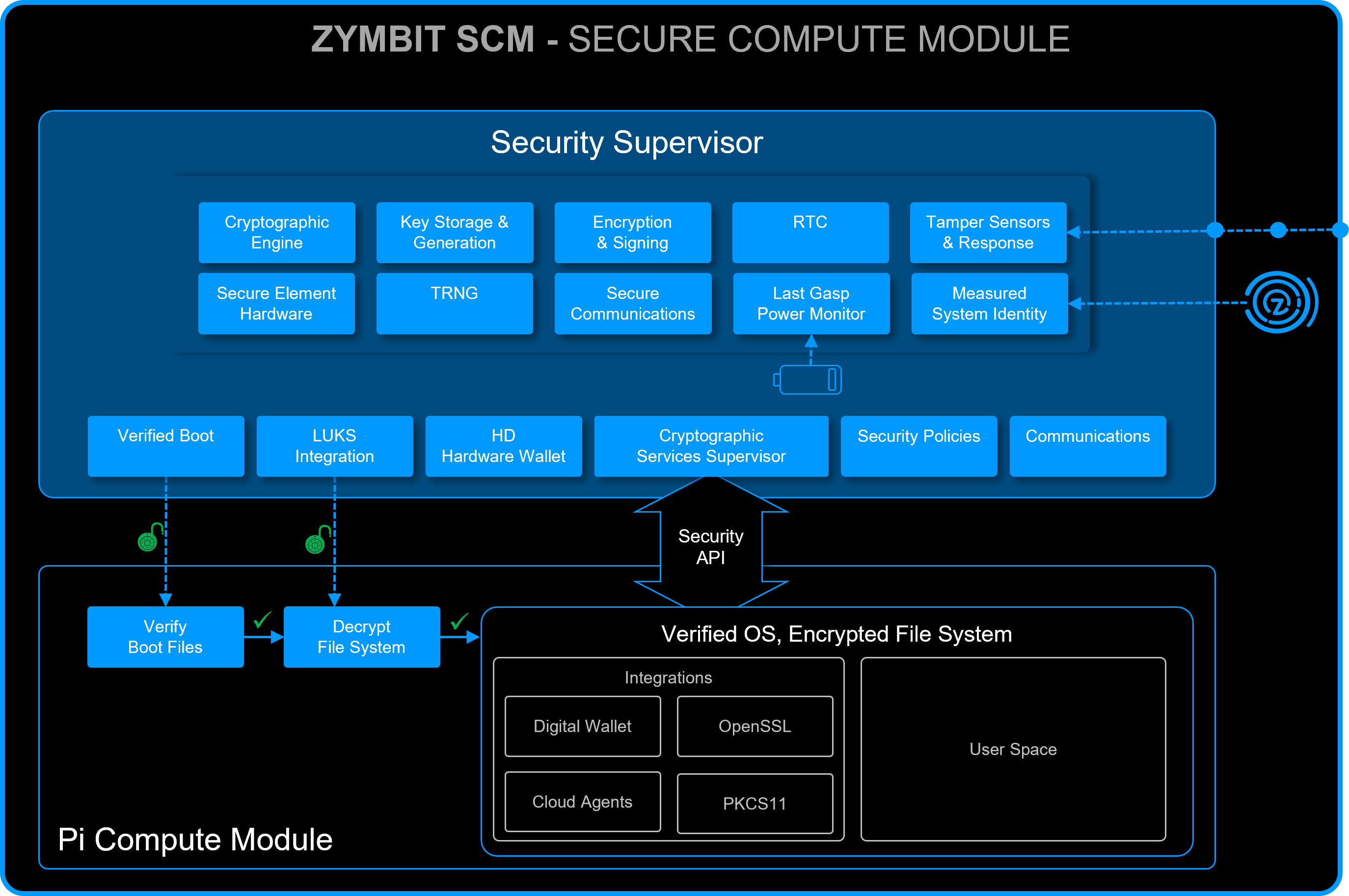

Hardened Linux compute protected by Zymbit verified hardware agent.

Zymbit Verified Hardware

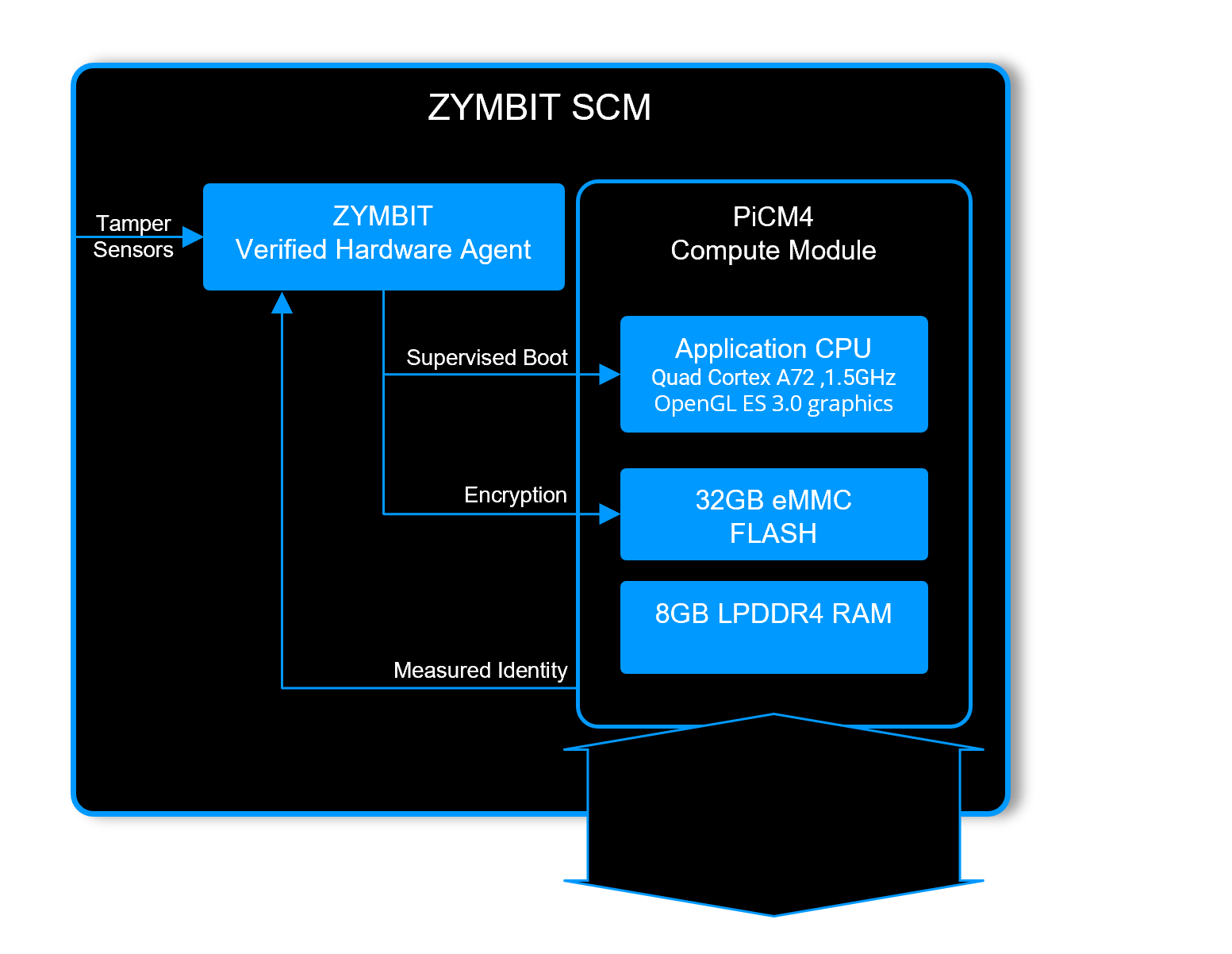

Each SCM includes a PiCM4 compute module that is protected by a Zymbit Verified Hardware Agent. The agent runs autonomously from the CPU and provides independent verification of boot, file system access and overall system integrity.

Verified Highlights

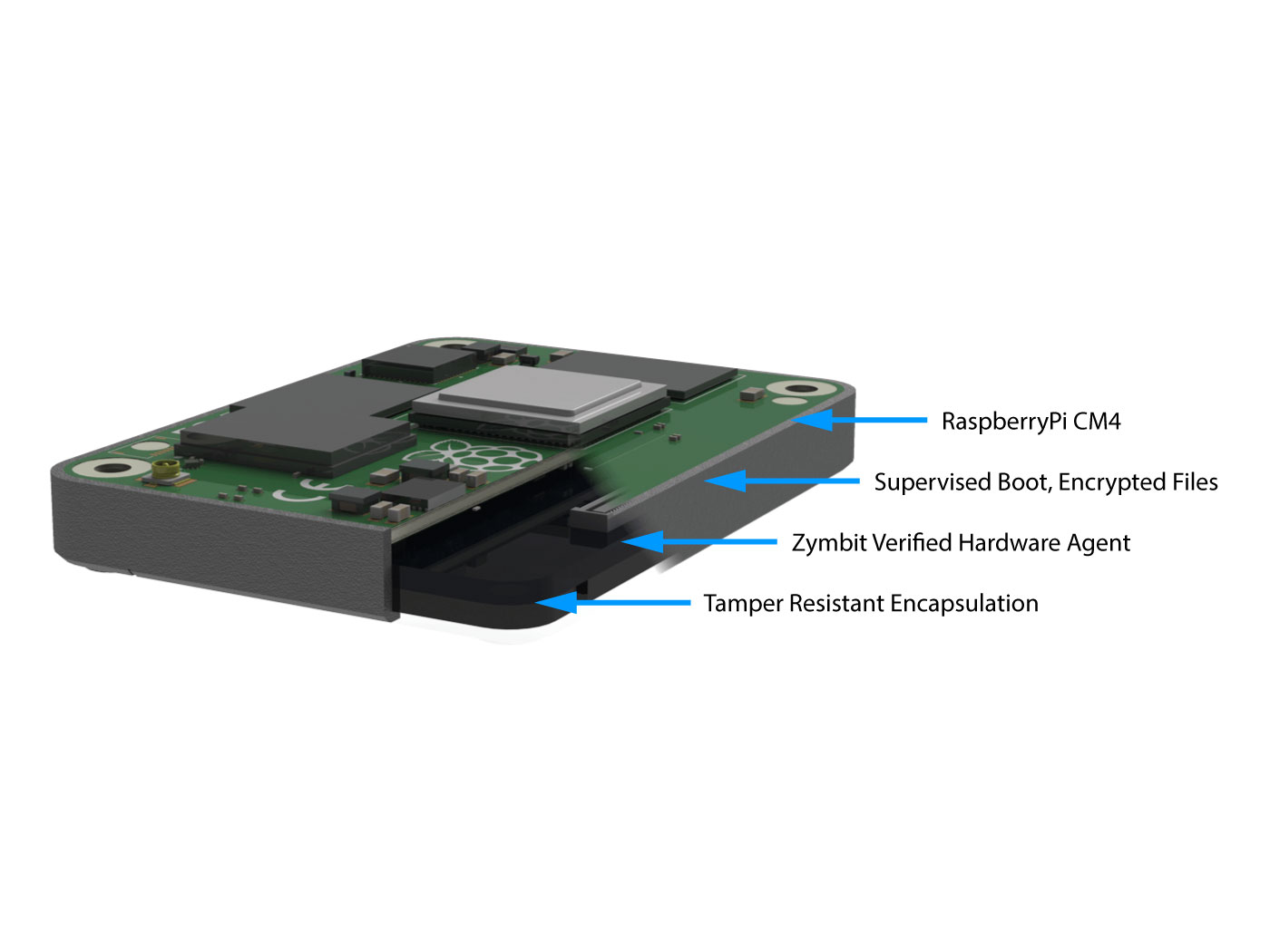

Secure encapsulated hardware stack

The SCM hardware is fully assembled and encapsulated by Zymbit, ready for provisioning and customer applications.
  • Reduced attack surface, increased  security
  • All connections hidden
  • External battery, under module option
  • Internal last-gasp destruction mode

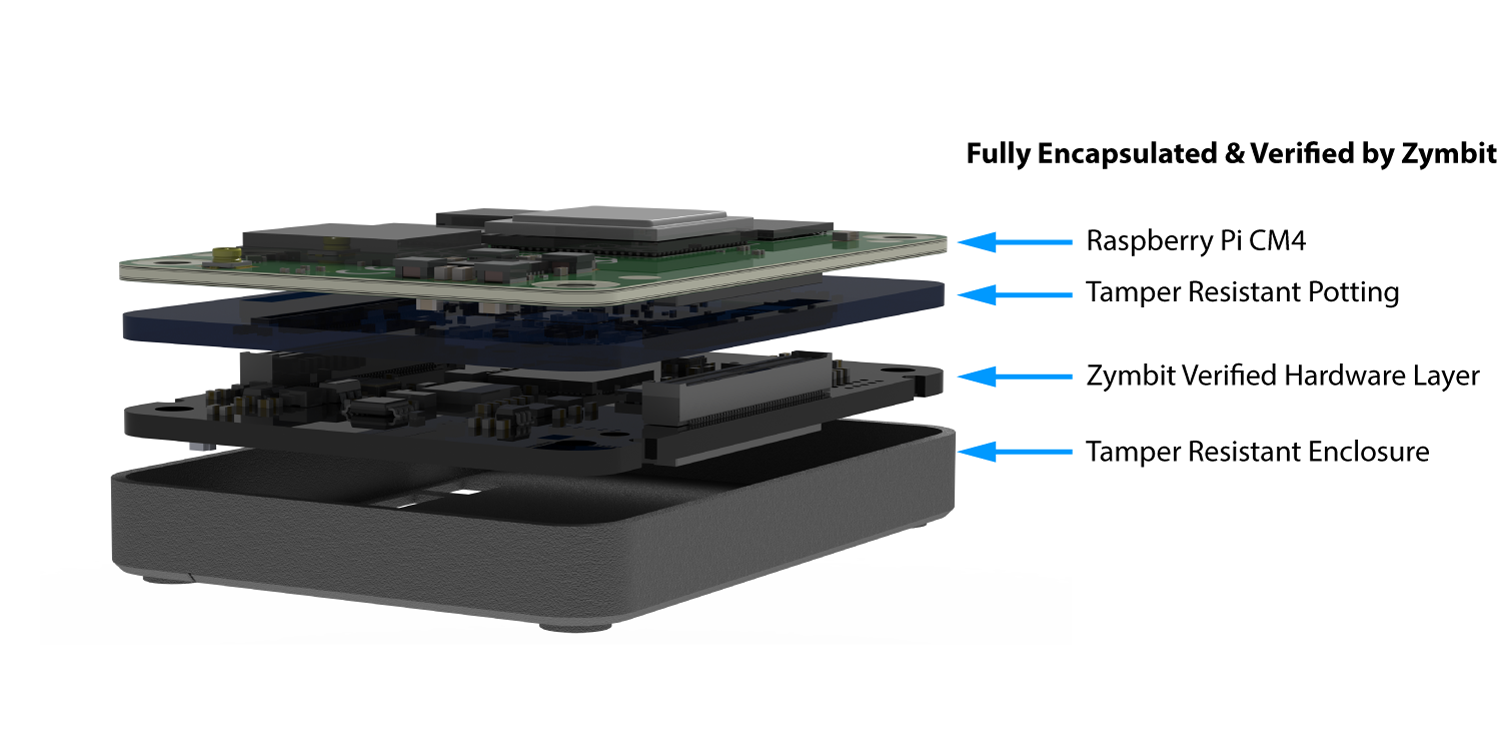

zymbit secure compute module verifiably bonded to Raspberry Pi CM4

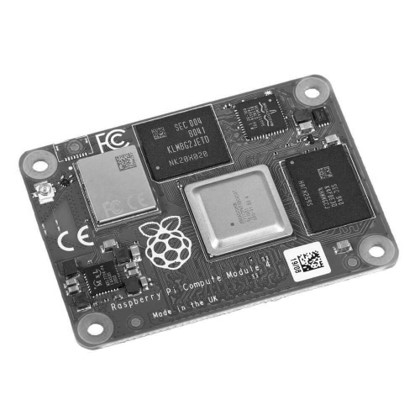

Raspberry Pi CM4 ready for Zymbit HSM

Full spec compute module

SCM includes the powerful PiCM4 Linux compute modules.

  • Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
  • OpenGL ES 3.1, Vulkan 1.0
  • Up to 8GB LPDDR4-3200 SDRAM
  • Up to 32GB eMMC Flash memory

First release product leverages the resources of the PiCM4 family of compute modules.

  • Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
  • OpenGL ES 3.1, Vulkan 1.0
  • Up to 8GB LPDDR4-3200 SDRAM
  • Up to 32GB eMMC Flash memory

Comprehensive peripherals support

  • Gigabit Ethernet, IEEE 1588 precision time protocol
  • Optional 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
  • 28 x user GPIO configurable for
  • SPI, I2C, UART, ADC, DAC, PWM, I2S
  • 2 x HDMI 2.0 ports (up to 4kp60 supported)
  • 1 x MIPI DSI Serial Display
  • 1 x MIPI CSI-2 Serial Camera
  • 1 x PCIe 1-lane Host, Gen 2 ( 5Gbps )

Python, C, C++ APIs

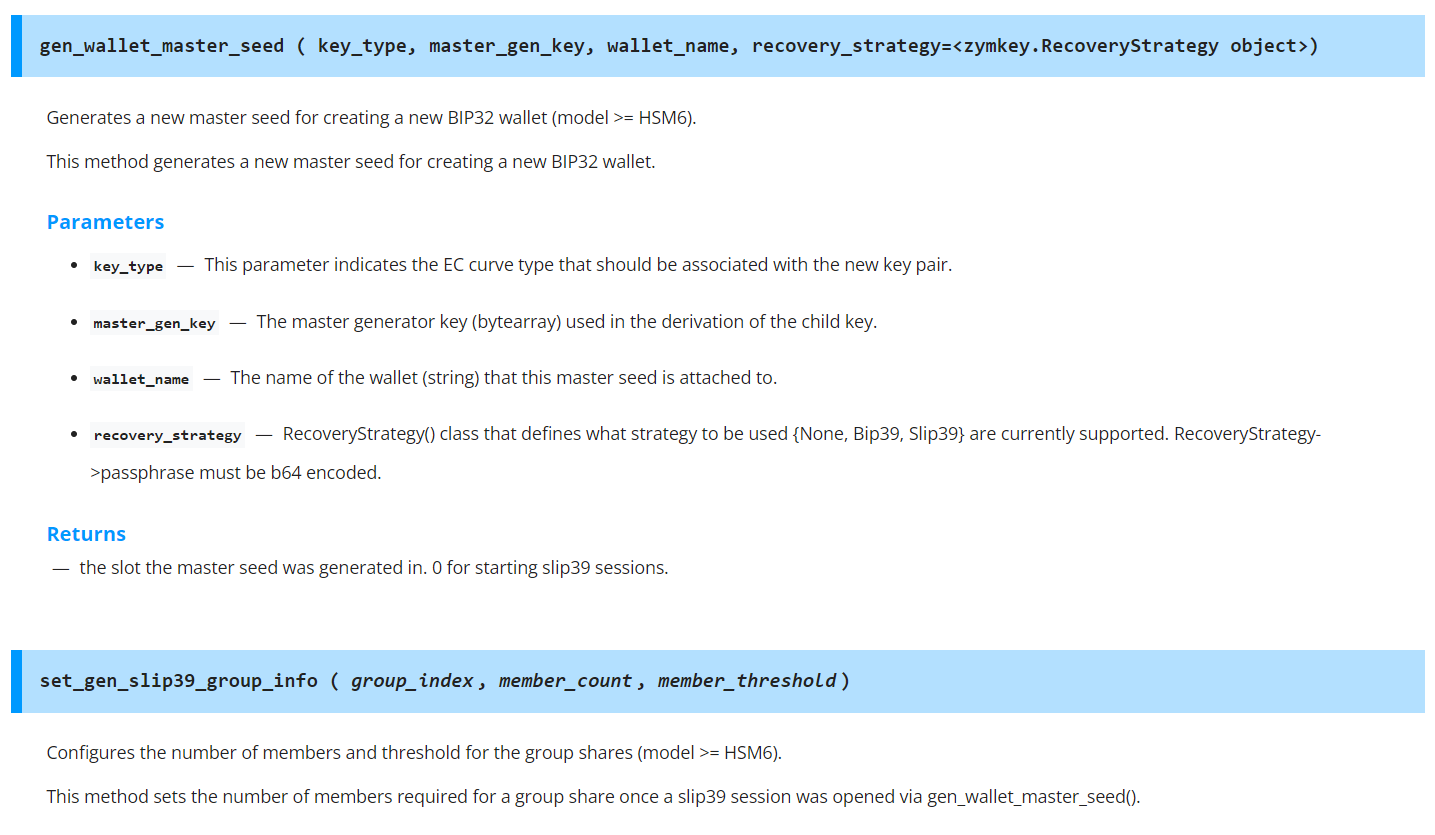

As developers ourselves, we try to build APIs that allow you to benefit from the power of cryptography, without needing to understand the underlying math. Zymbit wallet functions are designed to provide access to powerful features like generating a wallet master seed, child keys and managing wallet recovery from mnemonic phrases and shared secrets.

zymbit documentation for secure compute module
Zymbit verified hardware agent protects Raspberry Pi and other Linux compute modules

Cryptographic Engine & Services

The Secure Compute Module provides a wide choice of cryptographic services and types that are easily accessed through the Zymbit API.

Services

  • Key generation and storage
  • Encryption, signing and hash functions
  • True random number generator (TRNG)

Cypher Suite

  • ECC KOBLITZ P-256 (secp256k1)
  • ED25519, X25519
  • ECDH (FIPS SP800-56A)
  • TRNG (NIST SP800-22)
  • ECC NIST P-256 (secp256r1)
  • ECDSA (FIPS186-3)
  • AES-256 (FIPS 197)

Developer tools

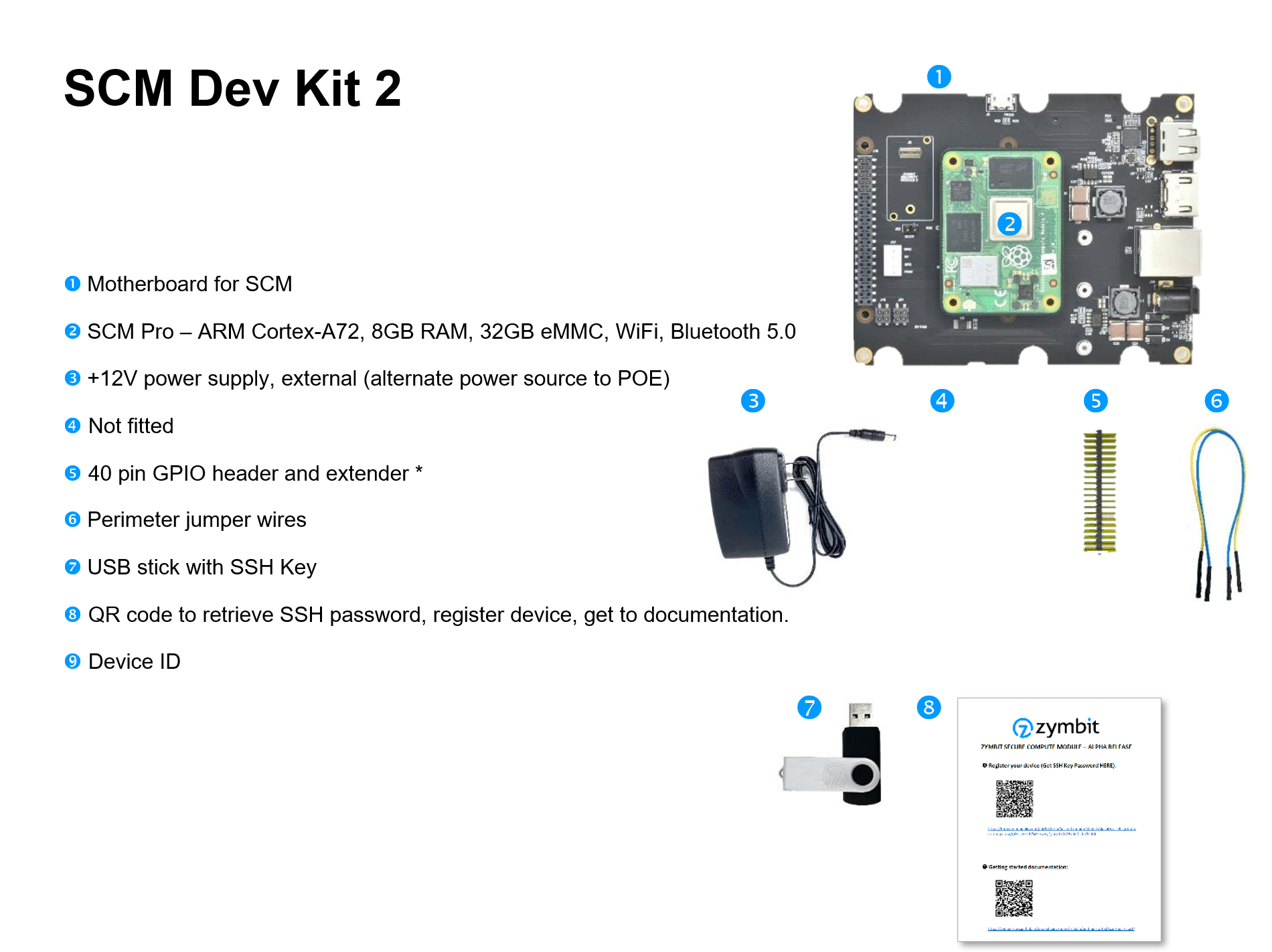

Dev Kit

  • Zymbit Secure Compute Module (Integrated Pi CM4)
  • Motherboard for SCM
  • Perimeter Detect breakout cable
  • External battery breakout
  • 12V power supply
  • USB drive with SSH keys necessary for SSH login
zymbit secure compute module developer kit

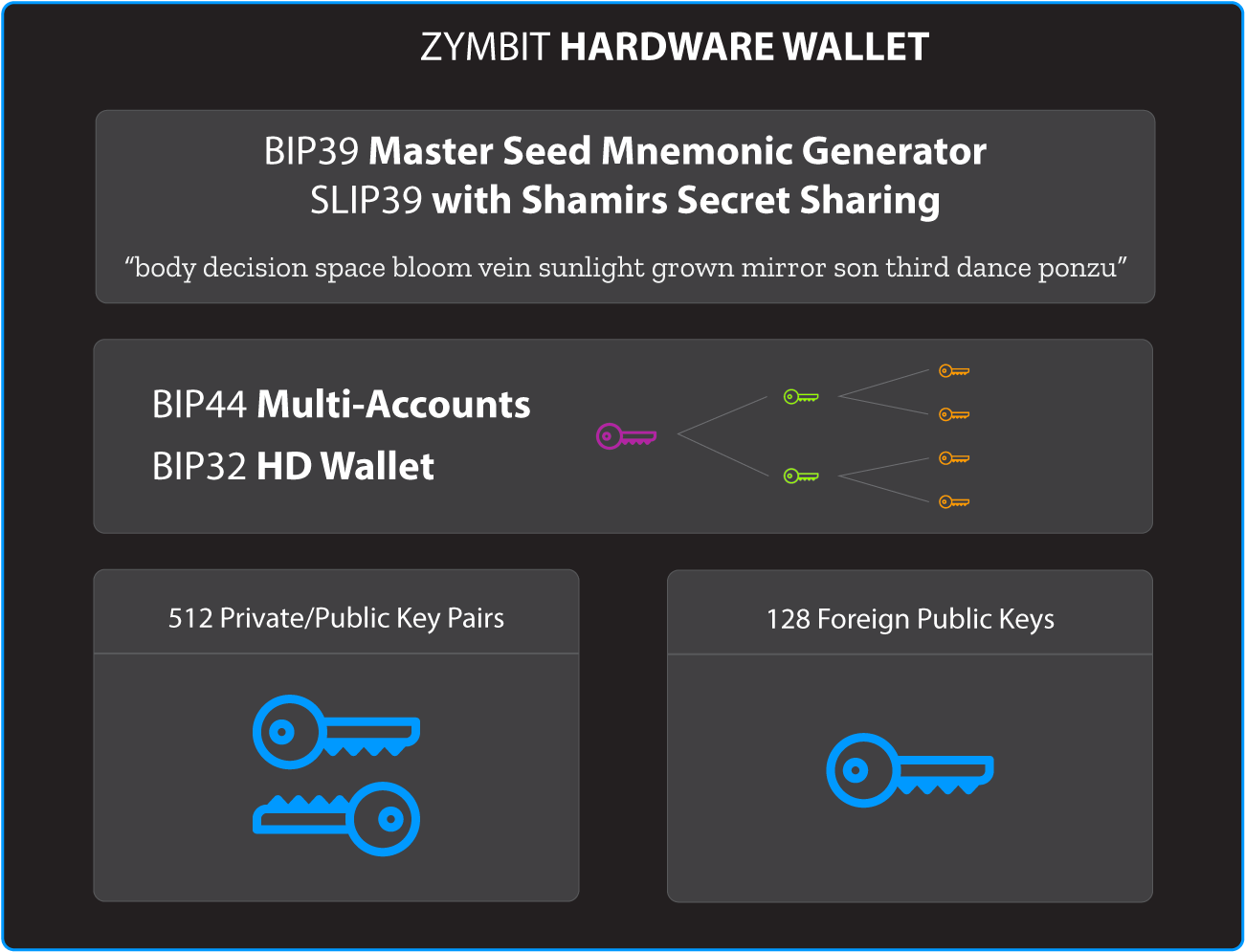

Optional HD Hardware Wallet

A Hierarchical Deterministic (HD) wallet is a reliable and secure way to manage hundreds of keys, embedded in a single device.

HD wallets use proven de-facto standard algorithms developed for blockchain and crypto applications.  Zymbit’s HSM6 product implements standard protocols –  BIP32/39/44  and SLIP39 – in a compact, easy to integrate module that’s programmable through secure APIs.

Tutorials on using HD wallet:

zymbit programmable hardware wallet for blockchain and crypto

Footprint compatible with CM4

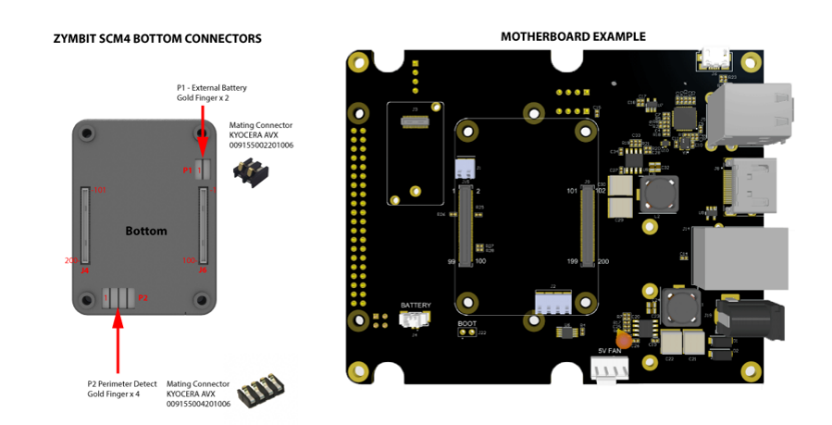

https://www.zymbit.com/wp-content/uploads/2022/05/SCM4-footprint-graphic-draft-X2.png

Ready to embed into your custom design

  • PCB footprint, schematic symbol, 3D models
  • Altium Designer & CircuitStudio
  • KiCAD
  • Mechanical drawings
  • CAD documents >

Pre-configured the way you want

To simplify your life, the SCM can be shipped with a choice of pre-configured OS, application software and security policies that align with your product development stage.

Develop

  • Optimized for maximum development flexibility
  • Standard OS builds & tools
  • Partially encrypted file system
  • Relaxed security policies, open ports

Secure

Deploy

  • Customer-specific configurations loaded, tested, deployed.
  • Standard zymbit curated configurations available.

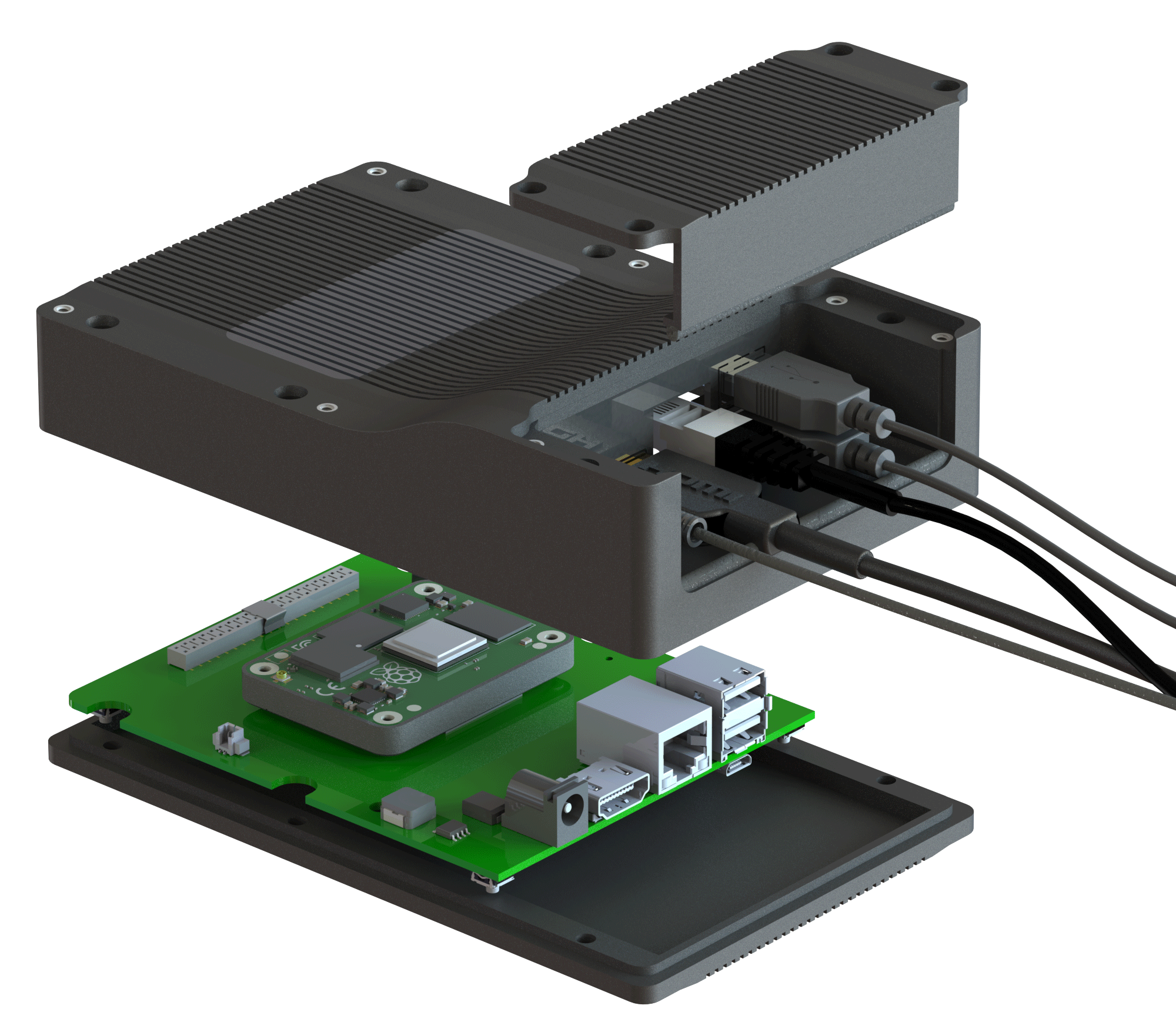

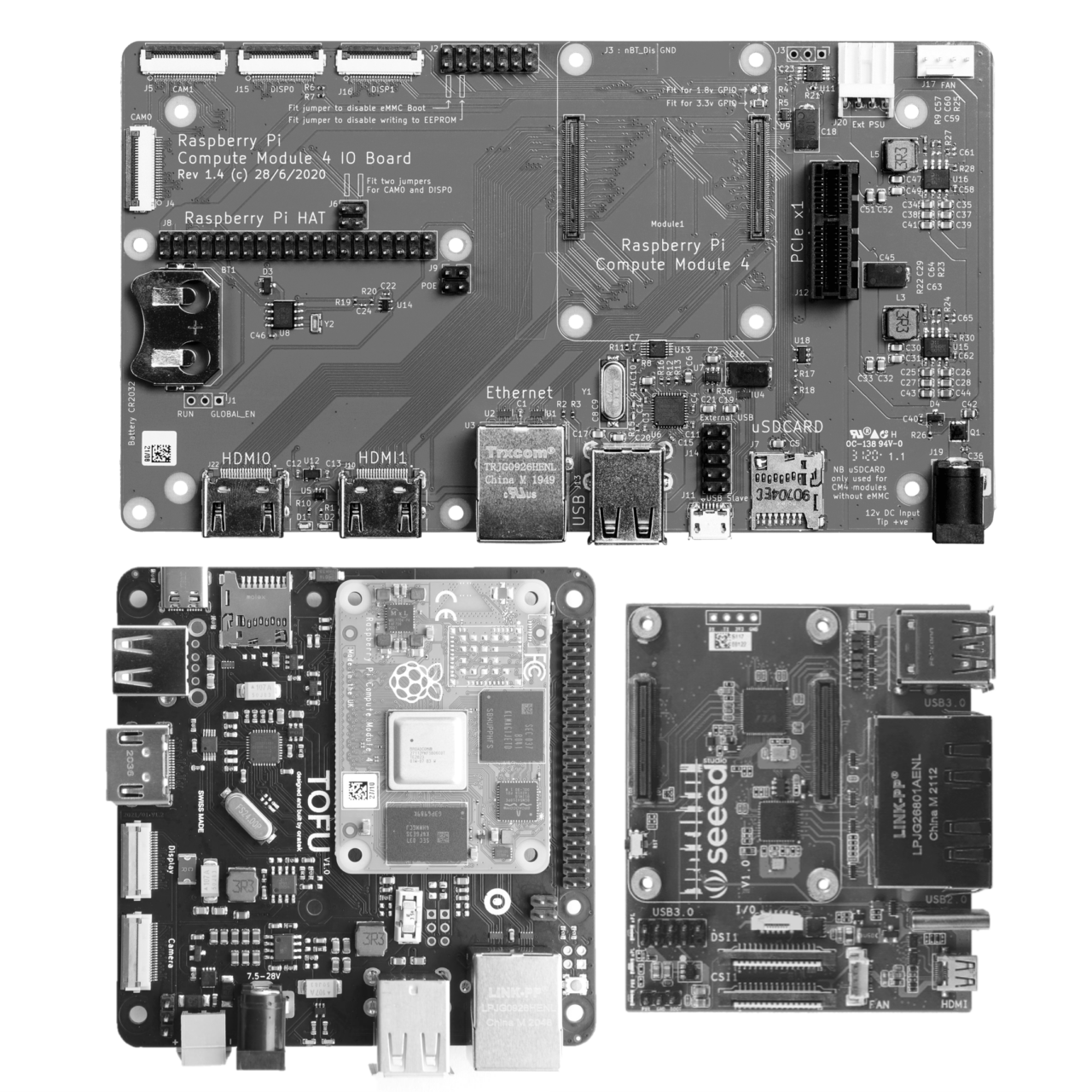

Need a complete secure edge node?

Add SCM to your choice of motherboard, enclosure and power source

  • Pre-assembled, encrypted and sanitized computes.
  • Pre-loaded with your choice of OS and image.
  • Standard enclosure options.
  • Choice of power sources.
  • OEM white label and custom features available.
https://www.zymbit.com/wp-content/uploads/2021/12/zymbit-secure-compute-platform-2112001.png

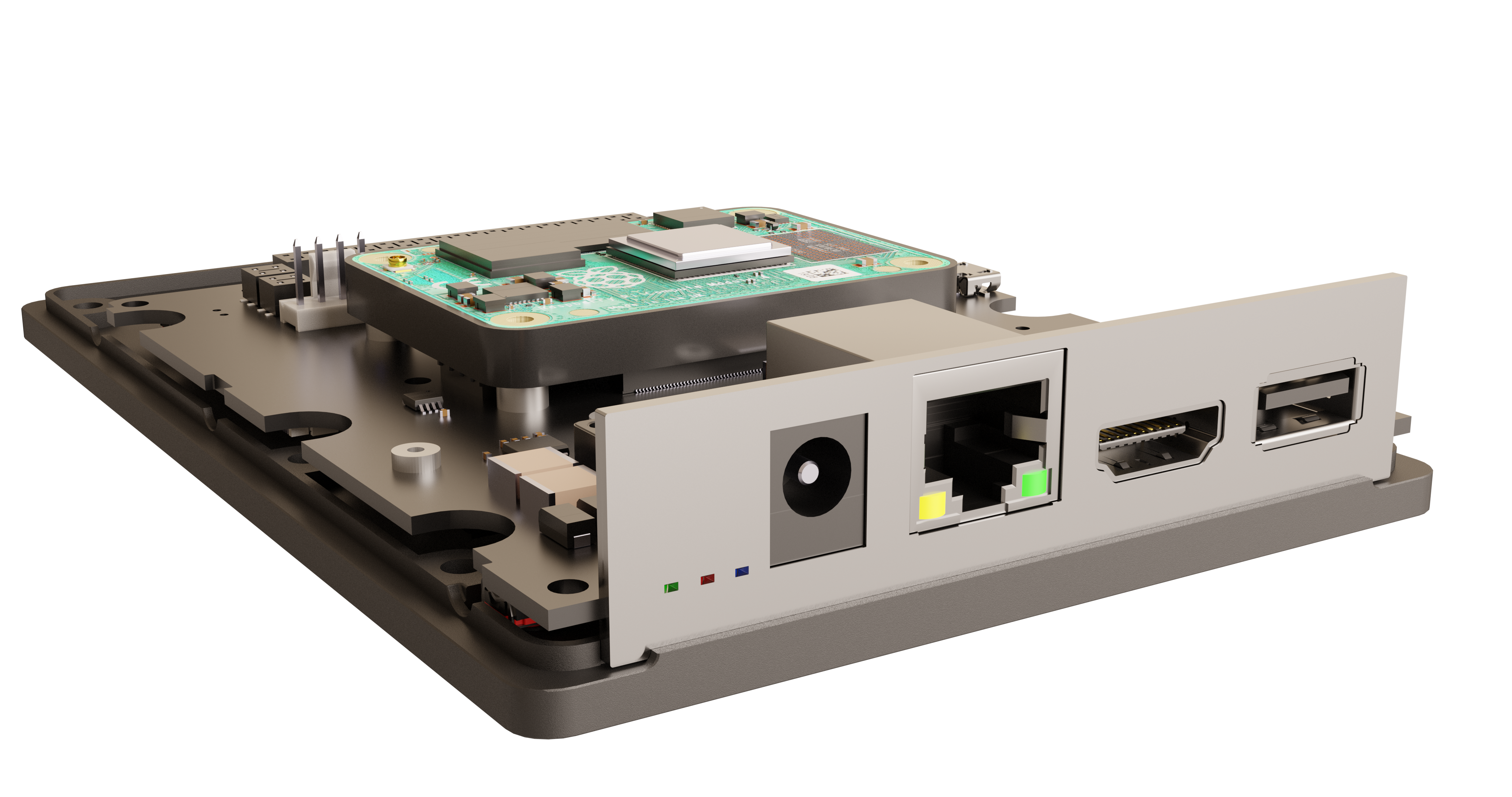

https://www.zymbit.com/wp-content/uploads/2022/06/Front-Corner-High-1.png
https://www.zymbit.com/wp-content/uploads/2022/06/Front-Corner-High.png
https://www.zymbit.com/wp-content/uploads/2022/06/Front-Corner-Oposite.png
zymbit secure compute manufacturing tools

Manufacturing tools and support

Zymbit manufacturing tools and services help you transition your SCM based design to volume manufacturing quickly and securely.

Specifications

Security Highlights Secure boot on Raspberry Pi
File system encryption
Key generation, storage and management in secure hardware
Cryptographic engine
Compute resources Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
OpenGL ES 3.1, Vulkan 1.0
Up to 8GB LPDDR4-3200 SDRAM
Up to 32GB eMMC Flash memory
Compute interfaces Gigabit Ethernet, IEEE 1588 precision time protocol
2.4 GHz and 5.0 GHz IEEE 802.11ac wireless
Bluetooth 5.0, BLE 28 x user GPIO configurable for
SPI, I2C, UART, ADC, DAC, PWM, I2S
2 x HDMI 2.0 ports (up to 4kp60 supported)
1 x MIPI DSI Serial Display
1 x MIPI CSI-2 Serial Camera
1 x PCIe 1-lane Host, Gen 2 ( 5Gbps )
1 x USB 2.0 port ( highspeed )
Private / public key pairs 512
Foreign public keys 128
Wallet Functions BIP 32 - hierarchical deterministic wallet
BIP 39 - master seed mnemonic generator
SLIP 39 - with shamir's secret sharing
BIP 44 - mulit-account support
Cryptographic Services ECC KOBLITZ P-256 (secp256k1)
ED25519, X25519
ECDH (FIPS SP800-56A)
TRNG (NIST SP800-22)
ECC NIST P-256 (secp256r1)
ECDSA (FIPS186-3)
AES-256 (FIPS 197)
Tamper Sensors 2 x Perimeter breach detection circuits
Accelerometer shock & orientation sensor
Main power monitor
Battery power monitor
battery removal monitor
Software API Python, C++, C
Physical Format Encapsulated module
Dimensions 57.2 x 42.5x 9.5 mm
2.25 x 1.67 x 0.37 Inches
Connectors Module main connectors: 2x Hirose Header DF40C-100DP-0.4V
Mating main connectors: 2x Hirose Receptacle DF40C-100DS-0.4V, 1.5mm clearance
Mating main connectors, extended** : 2x Hirose Receptacle DF40HC(3.0)-100DS-0.4V, 3.0 mm clearance
Mating external battery connector: 1x KYOCERA AVX 009155002201006
Mating perimeter, LED connector: 1x KYOCERA AVX 009155004201006

** required if CR2412 battery fitted under module
Production mode lock Software API command
Measured system identity & authentication Standard factors include RPI host, Zymbit HSM, eMMC memory
Data encryption & signing applications. Encrypt root file system with dm-crypt, with LUKS key manager hook
Encrypt data blobs with "zblock" function
Encrypt data in flight with OpenSSL integration
Real time clock 36-60 months operation with external CR2032, application dependent, 5ppm accuracy.
Backup battery Used for RTC and perimeter circuits
Under-module battery connector pads, to any 3V source on motherboard
Optional under module battery holder, for CR2412 coin cell *
* requires motherboard connector height 3.0mm
Backup battery monitor Yes
Last Gasp battery removal detection Yes
OEM Custom features Contact Zymbit
Example Cipher Suites AWS-IOT | TLS_ECDHE_ECDSA_AES256_SHA
MS-AZURE | TLS_ECDHE_ECDSA_AES_128_GCM_SHA256_P256
Accessories & related products Developer Kit
Warranty 18 months

Documentation

Using Product >
  • Getting started
  • Software APIs – python, C, C++
  • Tutorials
  • FAQ & troubleshooting
Conformity Documents >
  • EU Declaration of Conformity
  • FCC Declaration of Conformity
  • RoHS/Reach Declaration of Conformity
  • California Prop 65 Declaration of
CAD Files >
  • Mechanical dimensions
  • Step model
Manufacturing Tools >
  • Secure high speed encryption appliance
  • Programming and provisioning

Need help choosing product?

Explore and choose the best Zymbit product for your application. If you have questions or need something custom then were ready to help.
I'M READY TO BUY
Zymbit products are available from major distributors around the world, or directly from our webstore.
I HAVE QUESTIONS
If you need help with your application, or want to discuss a custom solution then contact us today.
