Secure Edge Node
Modular compute hardware that’s secure and easily customized.
+ Secure compute module
+ Motherboard
+ Accessories
+ Enclosure
+ Pre-configured security and software
Secure Edge Node
Modular compute hardware that’s secure and easily customized.
+ Secure compute module
+ Motherboard
+ Accessories
+ Enclosure
+ Pre-configured security and software
Solutions
Purpose Built Secure
Headless Compute + Wallet
Ideal for distributed apps, on premise key custodian hardware wallet….
Hardware Oracle + Gateway
Collect real-world data, timestamp, verify, attach access rights…
Point of transaction embedded hardware
Authenticate asset owners, manage keys and wallets
Secure Edge Compute
Reduced attack surface compute, tamper resistant and responsive.

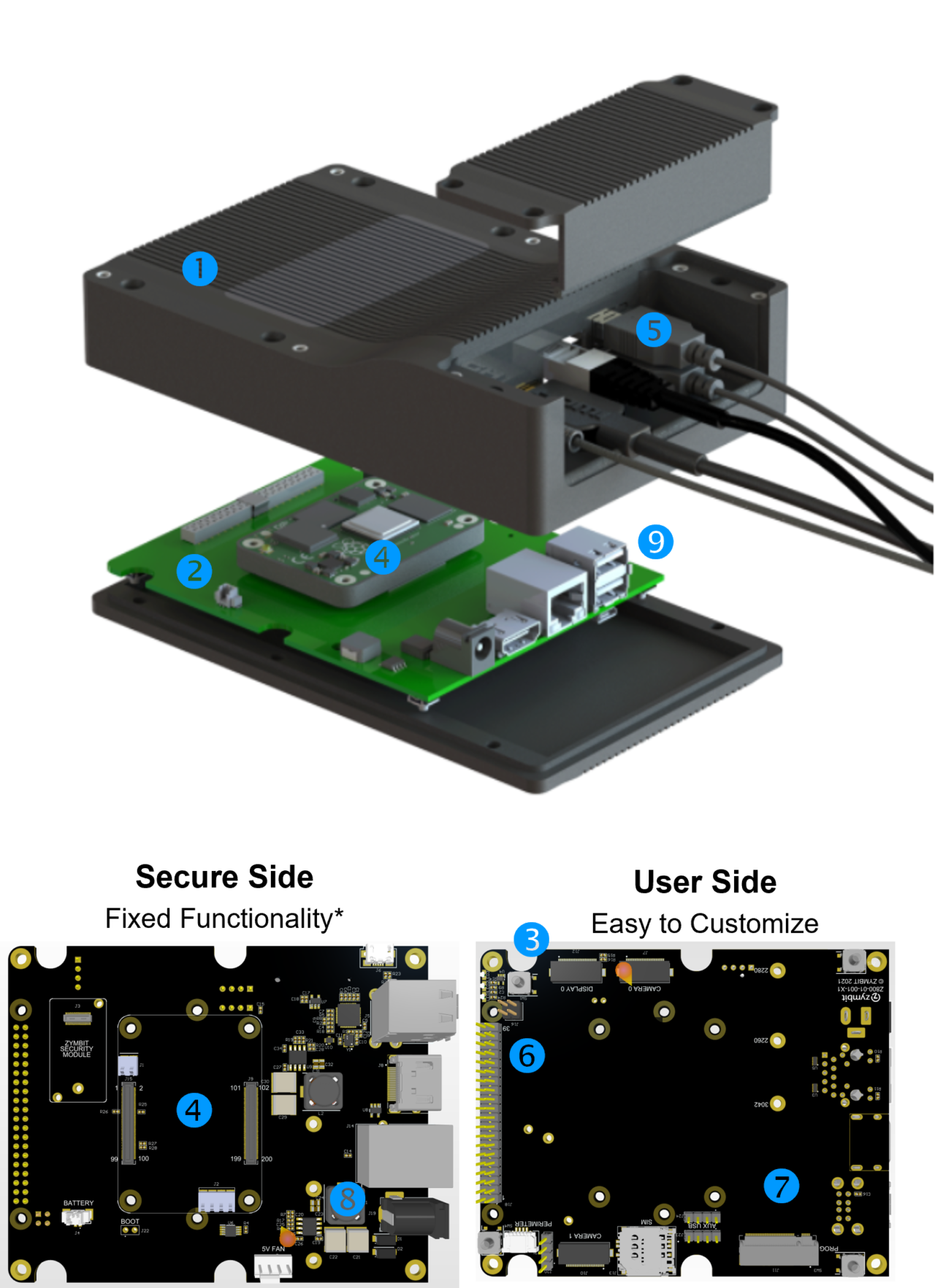

Platform Features
Secure modular hardware and software components designed to work together.
Secure Compute Module
- Hardware secured compute module
- Verified boot, encrypted file system
- Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
- Dedicated cryptographic engine
- Optional hardware HD wallet
- Fully encapsulated security hardware
- Compatible with other CM4 motherboards
+ Motherboard
Secure Side
Fixed functionality
- Zymbit Secure Compute Module socket
- 25W power supply, 12VDC barrel jack input
- 1G Ethernet, USB2 x 2, HDMI
- Optional Zymbit HSM6 socket
- Optional fan
- Secure enclosure ready
User Side
Designed to be easily customized.
- M.2 socket (key B) socket and micro-SIM cardholder
- Supports M.2 B/B+M key 2242, 2260, 2280 NVMe SSD
- Supports M.2 B key 3042 format LTE modems
- Auxiliary back up battery
- Auxiliary tamper circuit
- MIPI CSI Camera x2, DSI Display x1
- Integrated tamper switches x4
+ Accessories
Customize your secure compute platform with a wide range of Zymbit and third party hardware accessories.
Zymbit acessories
- SATA power board, rear connection
- POE power module, ethernet connection
Third party accessories
- SSD M.2 drives
- Cellular modems & services
- Cameras
- Industrial IO and relay boards
- Displays
+ Enclosures
Zymbit offers a standard baseline enclosure that accommodates Zymbit’s secure motherboard and a choice of accessories.

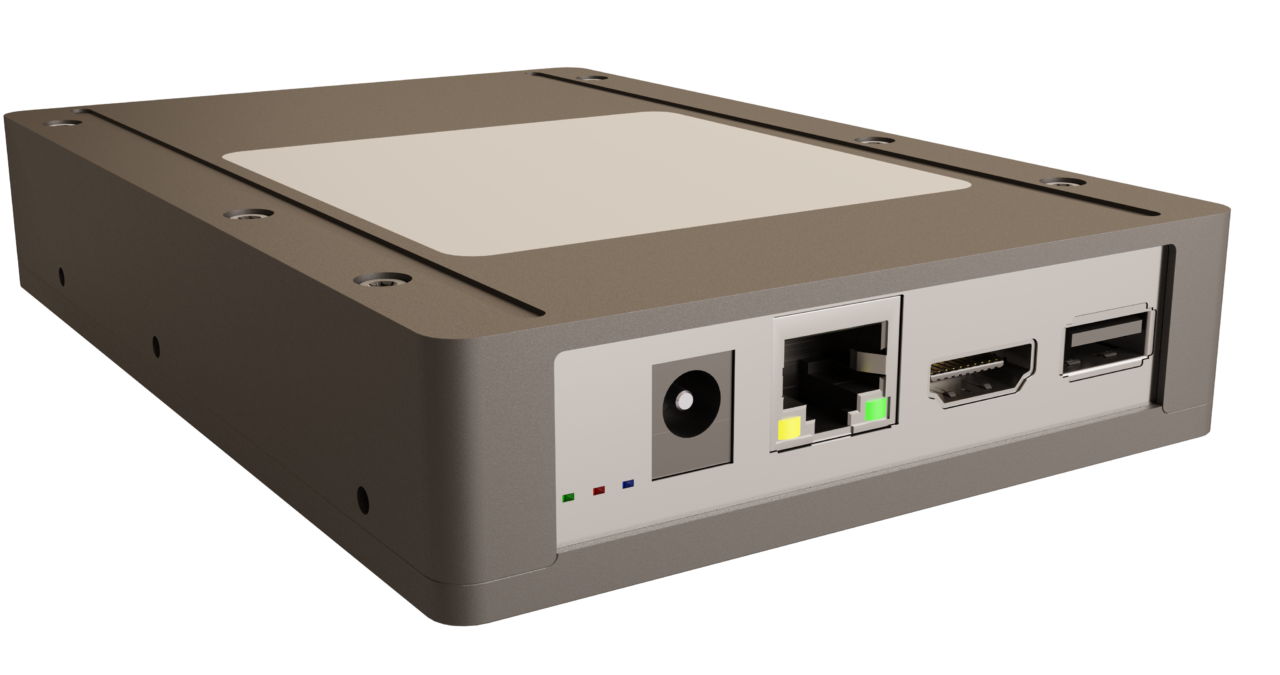

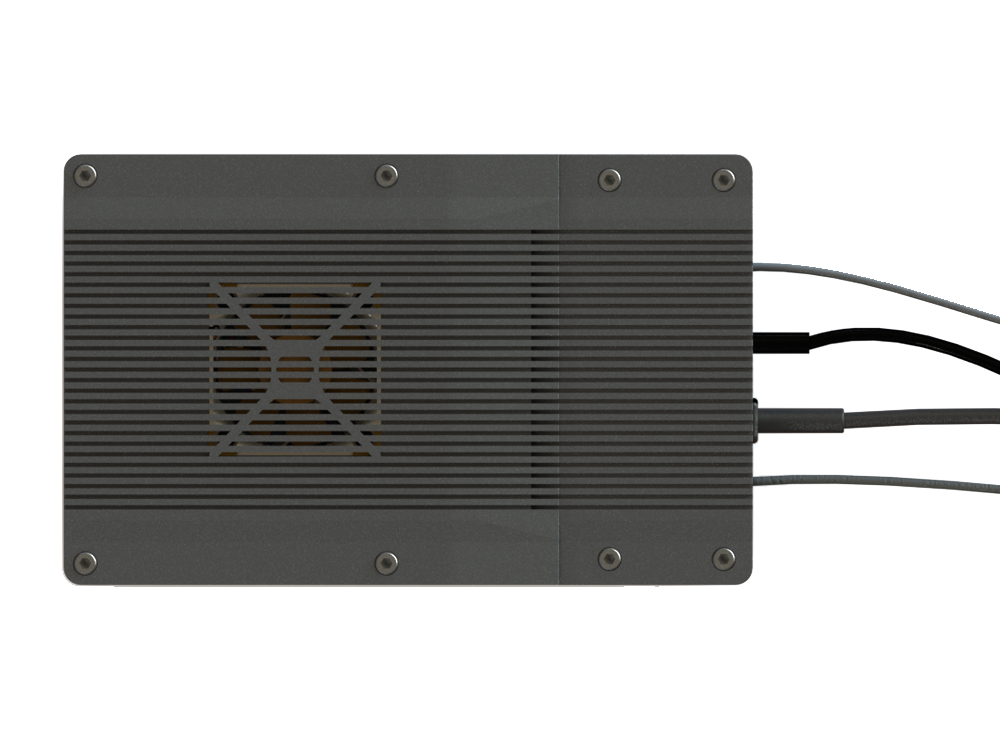

Standard Type D35 Enclosure
- Rugged plastic and metal construction
- Tamper switch compatible
- Integrated heatsink
- Customizable front connector plate
- Stackable
- 1.04 x 3.95 x 5.80 inches, 26 x 100 x 148mm
- Fit into standard 3.5″ drive bay caddy
- Optional SATA power connector
- Optional POE module
Custom Features
- User cover is easily modified to include customer-specific designs
- Mechanical interface CAD files available
- Options User Cover with SATA power support
Full Custom Enclosures
+ Pre Configured Software & Security
To simplify your life, Zymbit secure compute nodes can be shipped with a choice of pre-configured OS, application software and security policies that align with your product development stage. OEM and solution specific builds are also available.
Develop
- Optimized for maximum development flexibility
- Standard OS builds & tools
- Partially encrypted file system
- Relaxed security policies, open ports
Secure
- Defined security policies enabled
- Optimized OS build
- Fully encrypted file system
- Verified boot enabled
- Finalize configuration with Security Sanitization Guide and Scripts.
Deploy
- Customer-specific configurations loaded, tested, deployed.
- Standard zymbit curated configurations available.
Ready to buy Secure Edge Node?
Custom Solutions
Hardware, software, security and enclosure configured the way you need for your application.

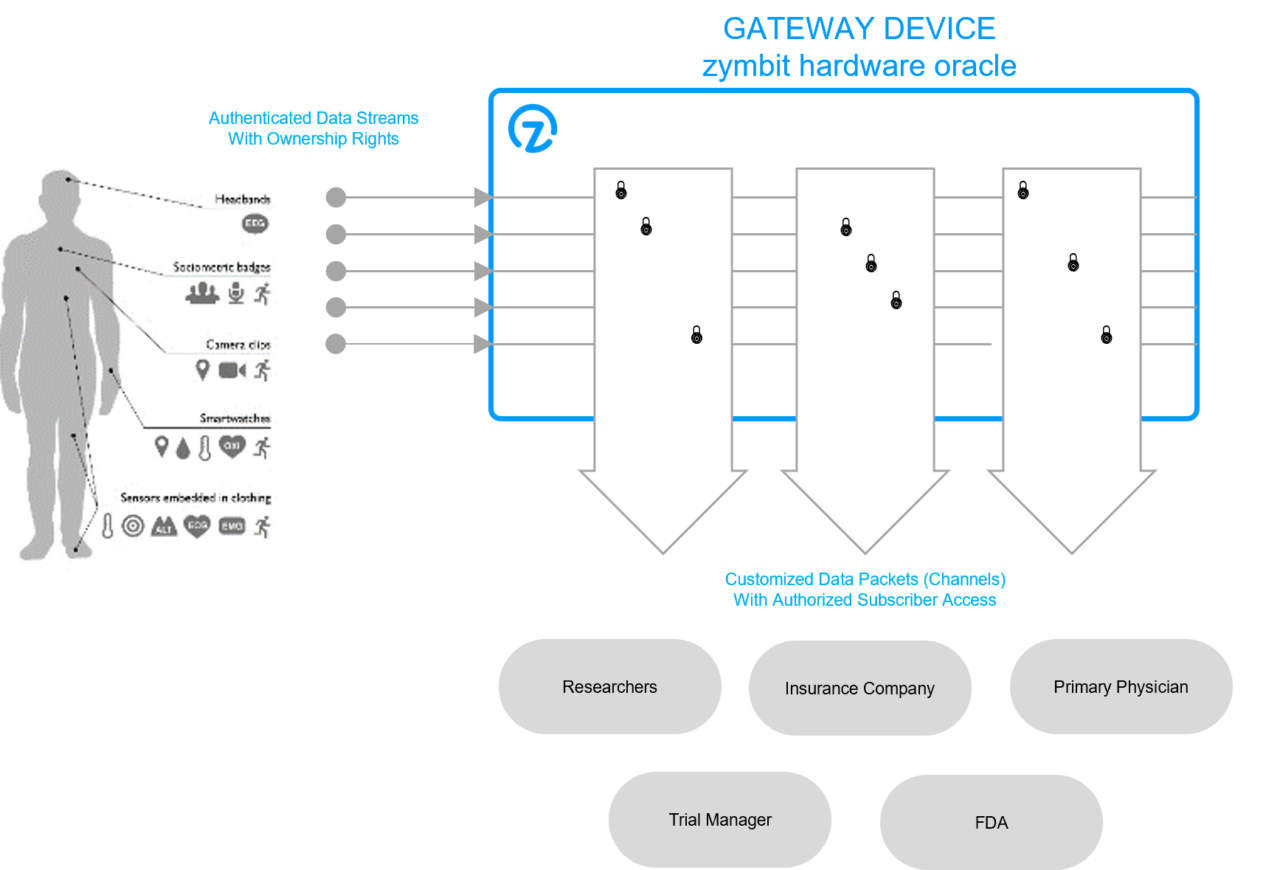

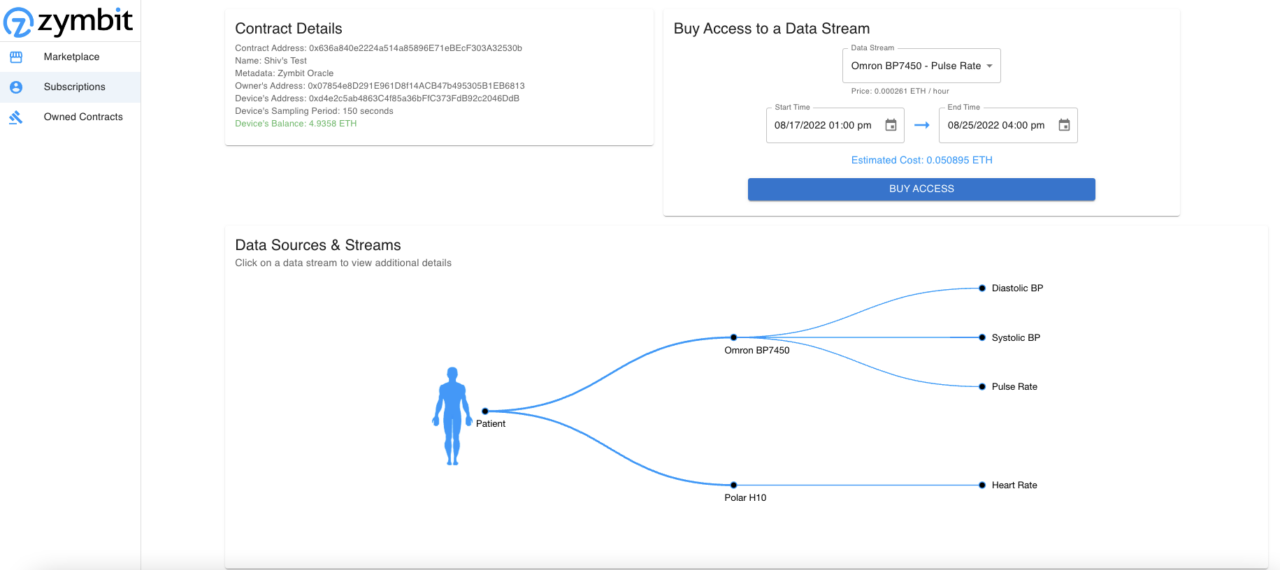

Project ZORAQLE
Project Objectives
- Collect medical sensor data from remote patients
- Verify data authenticity (source and integrity)
- Assign immutable ownership rights
- Design manage framework for granular access rights
- Facilitate transactions between owners and authorized subscribers
Products Used
- Secure Compute Module with HD wallet
- Secure Compute Node configured as hardware Oracles
- Ethereum blockchain
- Third party medical sensors

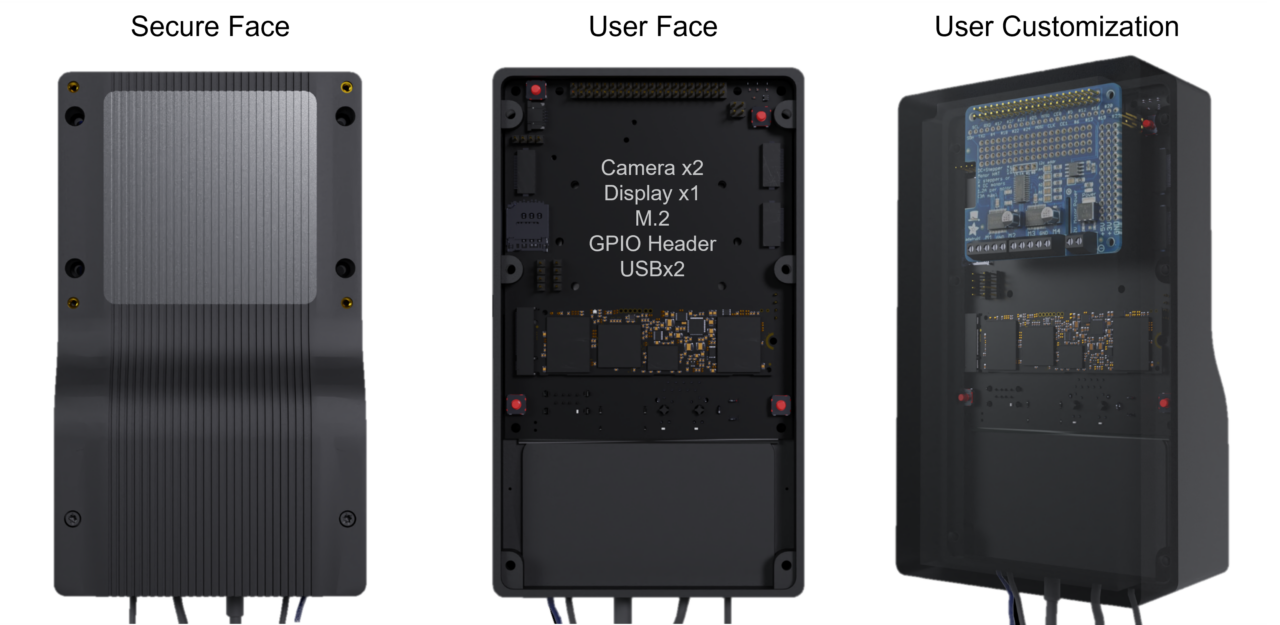

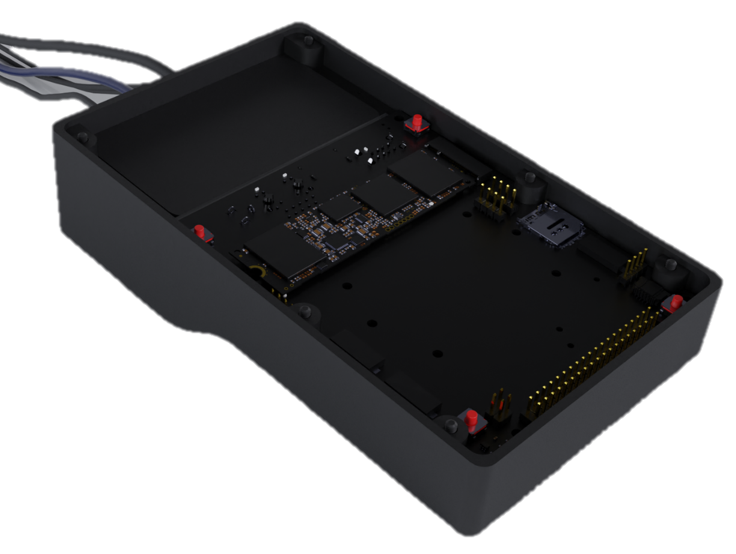

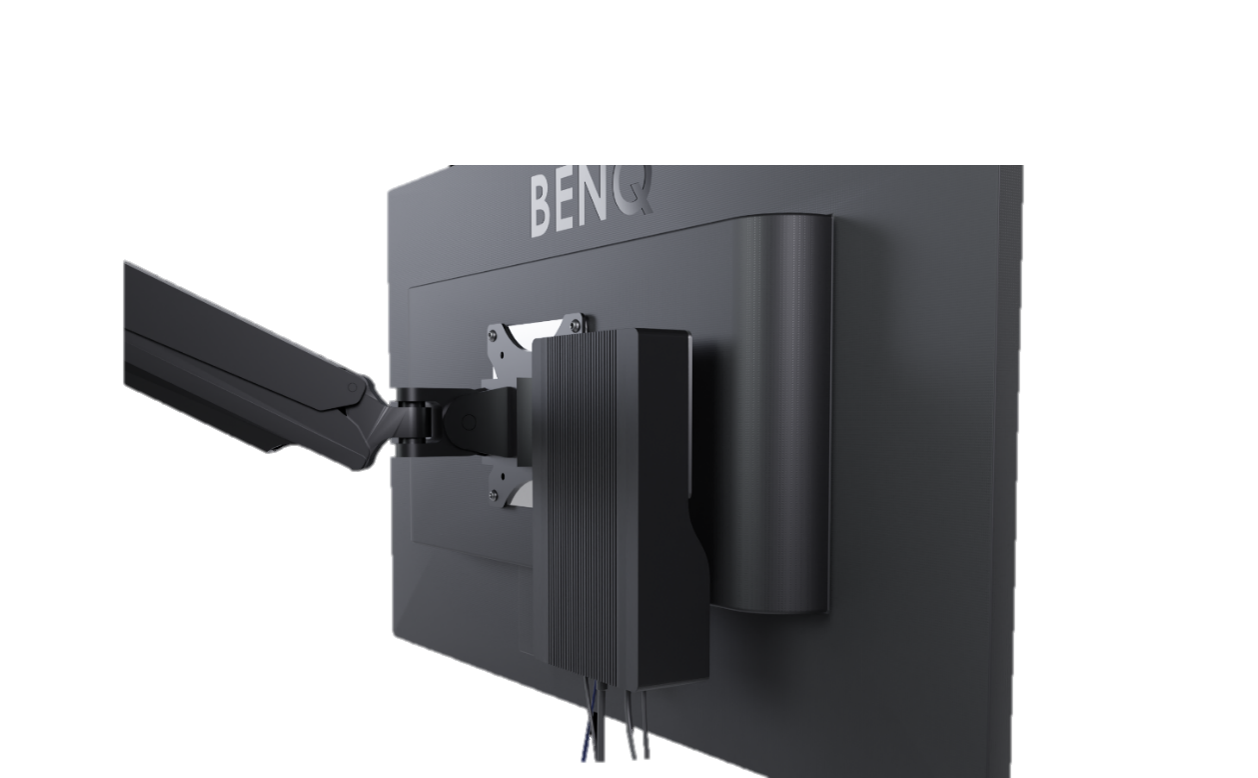

Project BISON
Custom Features
- Secure enclosure
- Secure connector cover
Standard Features
- Modular motherboard
- Tamper sensors
- Zymbit Secure Compute Module with verified boot
- GPIO header for easy expansion
- M.2 connector for cellular modem, memory SSD
- 25W power supply – 12VDC input
- 1G Ethernet, USB2 x 2, HDMI,
Available Options
- Hardware Wallet Enhanced
- Pre-loaded OS and customer application
- M.2 SSD drive
- M.2 Cellular Modem
- POE
