Secure Compute Board

SCB040 – Developer Kit 1

+ Zymbit SCM4 Secure Compute Module

+ Linux OS

+ BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

+ Zymbit hardware security supervisor

+ Tamper circuits

+ Bootware compatible.

zymbit secure compute edge for zero trust environments
zymbit secure compute edge for zero trust environments

Secure Compute Board – SCB 040

Developer Kit

+ Linux OS

+ BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

+ Zymbit hardware security supervisor

+ Tamper circuits

+ Bootware compatible.

Overview

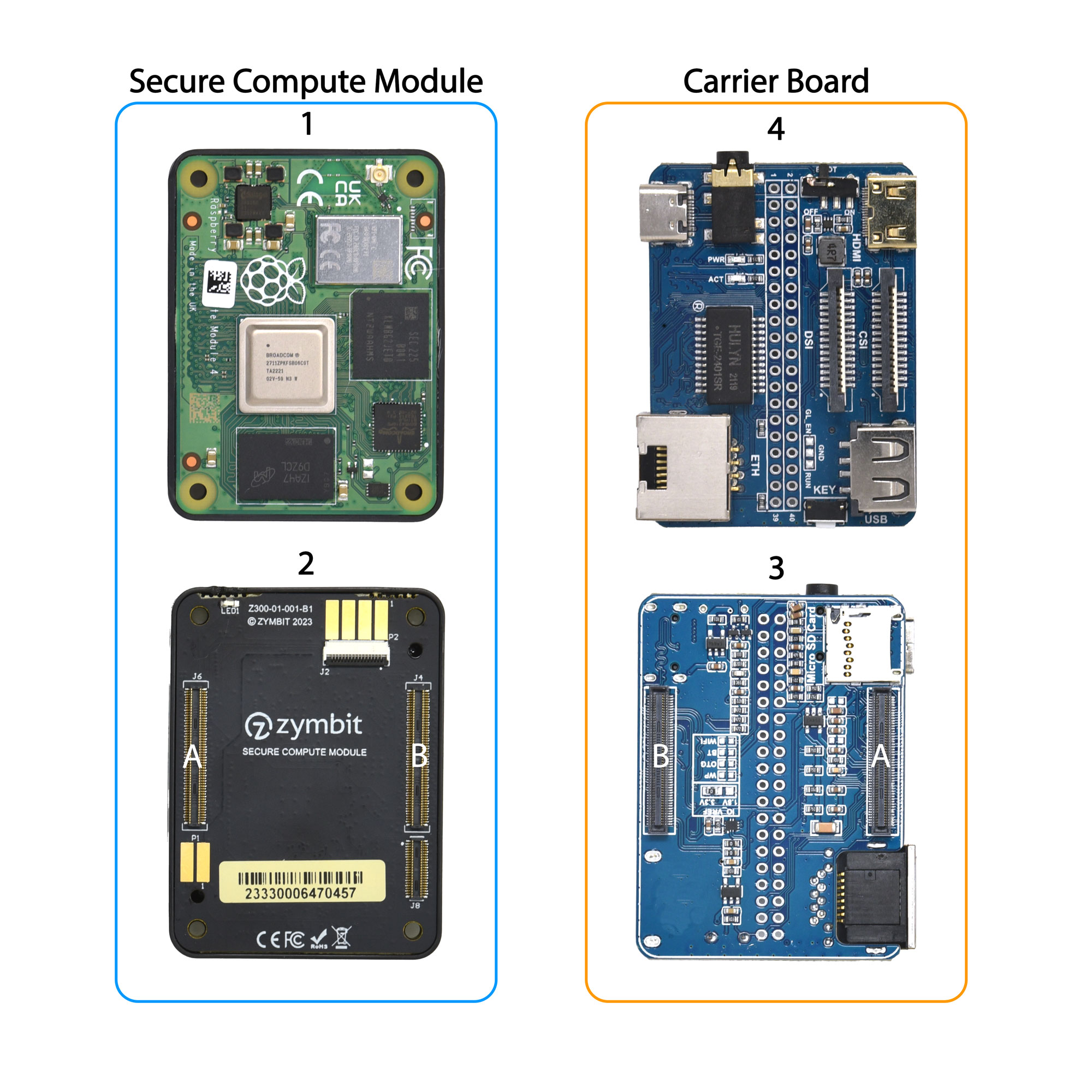

Developer Kit Components

The SCB040 developer kit is designed to get your full Linux IoT project up and running quickly, with a clear path to achieving security compliance through pilot and scale.  The kit includes the popular Zymbit Secure Compute Module  compute integrated with a lite weight carrier board.

SCM Security Features

  • Fully encapsulated compute with hardware security supervisor
  • Supports Bootware S3 services.
  • Pi CM4 compute
  • Secure boot
  • Encrypted file system
  • Secure key generation & storage
  • Hardware cryptographic engine
  • Fully encapsulated, tamper resilient
  • Standard and custom images
zymbit secure compute module with verified boot

Configuration & Login

  • Standard release, Bullseye Lite (64 bit).
  • Zymbit software installed.
  • Root partition is encrypted.
  • Hostname is zymbit-dev, login is zymbit/zymbit.
  • SSH is enabled.
  • Console login is not allowed.

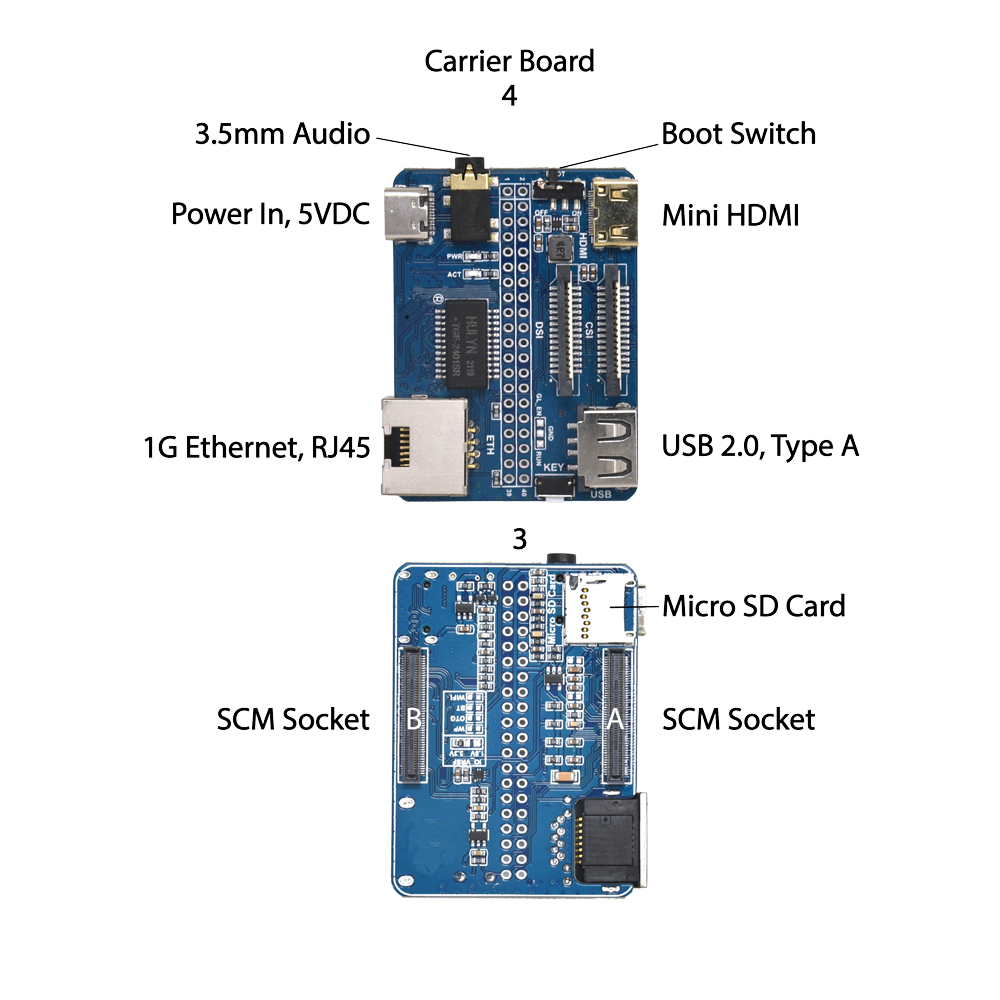

Connectors

zymbit secure compute module with verified boot
